How to Use MQTT

Introduction

Starting from firmware 2.2.1, the MQTT feature has been expanded to include subscription support and customization of topics.

Key Features:

• Publish: As before, the controller can publish its status and information to an MQTT broker. An MQTT client can then subscribe to these topics to receive real-time updates.
• Subscribe (New in 2.2.1): The controller can now subscribe to an MQTT broker, allowing it to receive and act upon specific commands from an MQTT client. This enables actions such as:
  • Manually starting a zone
  • Running a program
  • Rebooting the controller

To use these features, ensure your system meets the minimum requirements:

• Firmware Version: 2.2.1 or later
• App/UI Version: 2.4.1 or later

---

MQTT Configurations

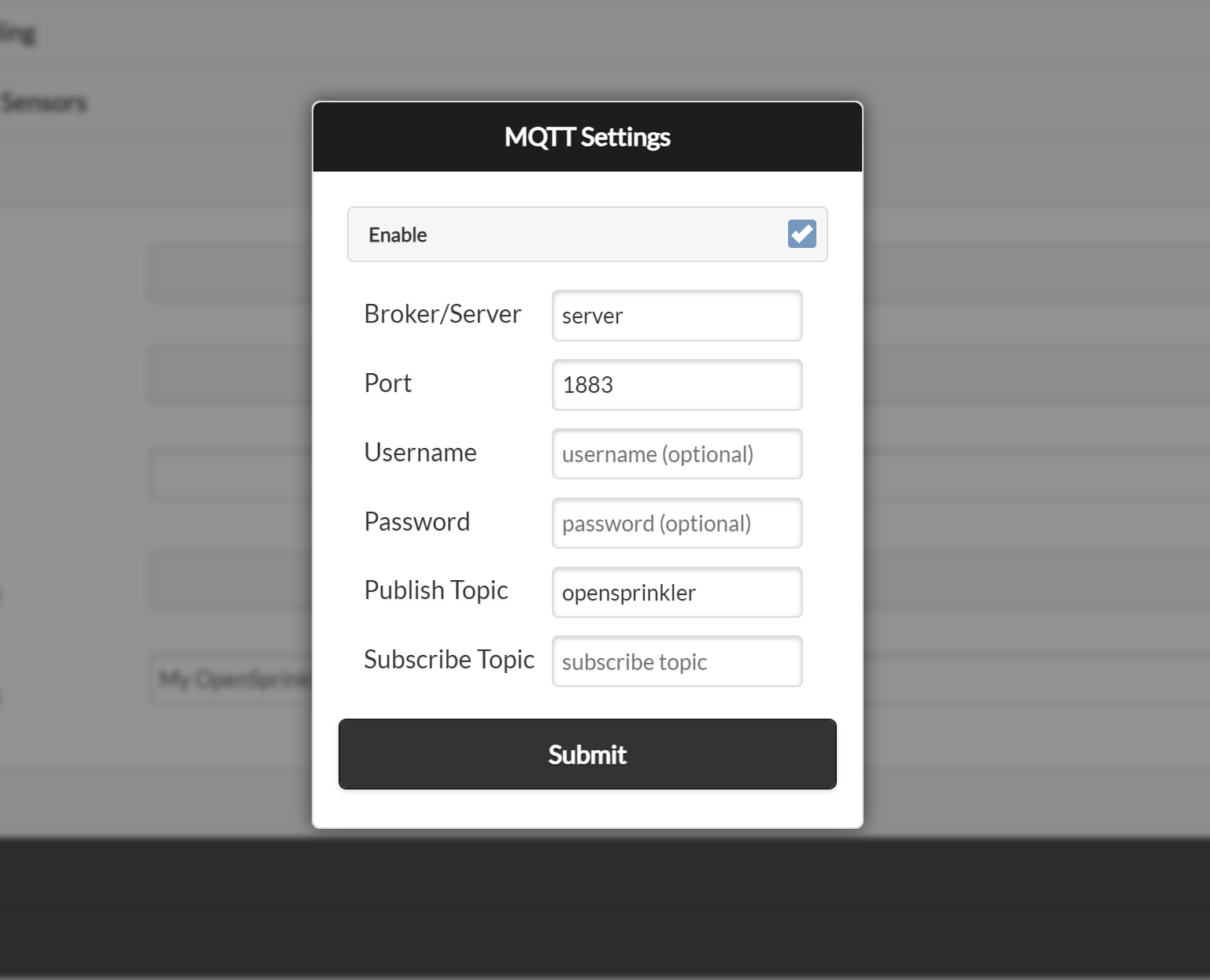

To configure MQTT settings in OpenSprinkler, navigate from the homepage to Edit Options → Integration. Here you can adjust the MQTT settings:

• Broker/Server: Enter either the IP address or DNS name of your MQTT broker/server.
• Port: The default MQTT broker port is 1883. Modify this if your broker uses a different port.
• Username/Password (Optional): Provide credentials if your broker requires authentication.
• Publish Topic: The topic where OpenSprinkler publishes notifications.
  • Default: opensprinkler (for backward compatibility)
  • Recommended: Change this to a unique name to distinguish between multiple controllers.
• Subscribe Topic: The topic OpenSprinkler listens to for commands. It is initially empty, which disables command subscription. Click Use Default to generate a unique topic based on the controller's MAC address, or enter another topic that is unique to this controller.

---

Understanding MQTT Broker and Client

If you're new to MQTT, you may want to look up MQTT tutorials or guides for a deeper understanding.

• In Linux or Raspberry Pi, you can set up an MQTT broker using Mosquitto:

sudo apt install mosquitto mosquitto-clients

• MQTT follows a publisher/subscriber model:
  • The MQTT broker manages multiple publishers and subscribers.
  • A publisher sends messages to the MQTT broker.
  • A subscriber receives messages from the MQTT broker.
• You can use these command-line tools:
• Publish a message:

mosquitto_pub -h <broker_ip> -t "my_topic" -m "message_content"

• Subscribe to a topic:

mosquitto_sub -h <broker_ip> -t "my_topic"

• Mobile apps are also available for publishing and subscribing to MQTT topics.

---

Understanding MQTT Topics

MQTT data is structured in a hierarchy of topics separated by "/".

Example: Publishing Data from OpenSprinkler

• The OpenSprinkler firmware can publish status data to: my_opensprinkler/station/0
  • Contains status information for station 0 (first station) of the my_opensprinkler controller.
• Or send a sensor event to: my_opensprinkler/sensor1
  • Contains data for sensor1 of that controller.

Subscribing to Topics

• A subscriber can:
  • Listen to a specific topic: my_opensprinkler/station/0
  • Use wildcards to subscribe to multiple topics:
    • Receive all topics under my_opensprinkler/: my_opensprinkler/#
    • Receive ALL topics from ALL controllers: #

With these configurations, OpenSprinkler can effectively integrate with MQTT enabling seamless automation and real-time updates.

---

Topics Published by Firmware 2.2.1(6)

OpenSprinkler publishes messages to the MQTT broker in a format similar to IFTTT and email notifications.

• The default root topic is opensprinkler, but can be customized in the settings.
• The publish topic itself can contain subtopics, such as MA_home/lawn/sprinkler.
• Due to the firmware storage limit, the maximum topic length is 24 characters.
• Below we use publish_topic to denote this name.

Here is the list of topics that firmware 2.2.1(6) publishes:

• Reboot: publish_topic/system sends {"state":"started","cause":cc} when the controller boots, where cc is the reboot-cause code.
• Program Start: publish_topic/program/x, where x is the program index (starting from 0 for the first program).
  • A successfully scheduled program sends {"state":1,"wl":xx,"wa":w,"sa":s,"ta":t}. wl is the weather-adjusted watering percentage; wa, sa, and ta are the weather, sensor, and total adjustment factors.
  • A skipped program sends {"state":"skipped","wtrestr":x}. The program may be skipped because its watering level is 0% or because of the weather restriction indicated by wtrestr.
• Zone Activity: publish_topic/station/x, where x is the index (starting from 0 for the first zone).
  • This topic sends {"state":1,"duration":ss} when zone x starts, where ss is the scheduled runtime in seconds.
  • It sends {"state":0,"duration":rs} when that zone closes, where rs is the actual runtime in seconds. When SN1 is configured as a flow sensor, the closing payload also includes "flow":ff for a completed run.
  • To receive messages for all zones, subscribe to wildcard publish_topic/station/#. Firmware 2.2.1 also publishes {"state":1} on a master/pump zone when that zone opens, but the duration is omitted as a master zone runs dynamically based on other zones.
  • For a Bundle Station run, only the bundle leader publishes zone activity; its derived bundle members do not publish separate activity messages.
• Sensor Events: publish_topic/sensorN sends {"state":1} when built-in sensor N activates and {"state":0} when it deactivates. N ranges from 1 to 4 where supported by the controller hardware.
• Rain Delay Events: publish_topic/raindelay is similar to sensor events but for rain delays.
• Flow Sensor Data: publish_topic/sensor/flow sends {"count":cc,"volume":vv} when the flow sensor generates data, normally after a program finishes. cc is the pulse count and vv is the calculated volume in the unit implied by the configured Flow Pulse Rate.
• Weather Adjustment Updates: publish_topic/weather sends {"water level":pp} when the watering percentage changes, such as after an automatic weather update.
• Flow Alert: publish_topic/station/x/alert/flow sends {"flow_rate":ff,"duration":ss,"alert_setpoint":aa} when zone x exceeds its configured flow-alert setpoint.
• Current Alert:
  • Station Under or Overcurrent Alert: publish_topic/station/x/alert/curr, where x is the station index. This topic sends {"curr_value":cc,"imin_threshold":tt} or {"curr_value":cc,"imax_limit":tt} for under and overcurrent alerts respectively.
  • System Overcurrent Alert: publish_topic/overcurrent sends {"curr_value":cc,"imax_limit":tt}. !!! note Station overcurrent is detected immediately after a station is turned on (so the firmware can detect the offending station). System overcurrent is detected during the operation of the system, not associated with opening a zone.

---

Topics Subscribed by Firmware 2.2.1

Firmware 2.2.1 allows OpenSprinkler to subscribe to a user-defined MQTT topic, enabling it to receive commands from an MQTT broker. This means an MQTT client can send commands to control OpenSprinkler's operations.

To enable this feature:

• Set a valid Subscribe Topic in the MQTT configuration above. Click Use Default to generate one from the controller's MAC address (e.g. OS-112233AABBCC).
• You may enter a custom topic, but each controller should have a unique subscribe topic.
• Due to firmware storage limitations, the maximum length of a subscribe topic is 24 characters.
• The Subscribe Topic is optional. If left empty, the controller will not respond to MQTT commands.

To control OpenSprinkler, an MQTT client must:

1. Publish a command message to the subscribe_topic.
2. Include a payload that specifies the command and parameters.

The commands must follow the same format as OpenSprinkler's HTTP API (see the HTTP API reference). Specifically:

• Payload structure: <endpoint>?<parameter1>=<value>&<parameter2>=<value>
• The endpoint is a two-letter code (without a leading "/") as in the HTTP API.
• Parameters are separated by &.
• The device password (pw) must be included as its lowercase MD5 hash, unless Ignore Password is enabled.

MQTT commands are fire-and-forget. The controller does not publish an acknowledgement or error response, so an invalid or rejected command produces no MQTT reply.

Only a subset of the HTTP API commands are currently supported. Their validation and behavior match the corresponding HTTP endpoints:

• Change Controller Variables (endpoint: cv) with the following parameters:
  • rsn: Reset all stations (include those waiting to run).
  • rbt: Reboot controller.
  • en: Operation enable/disable.
  • rd: Set rain delay time (in hours).
• Manual Station Run (endpoint: cm)
• Manually Start a Program (endpoint: mp)
• Start Run-Once Program (endpoint: cr)

For example, to reset all stations, the payload message would be cv?pw=xxx&rsn=1, where pw=xxx is the lowercase MD5 hash of the device password.

To use mosquitto_pub to send this command, you may run:

mosquitto_pub -h your_mqtt_broker -p 1883 -t subscribe_topic -m "cv?pw=xxx&rsn=1"

As another example, to manually start zone 1 for 2 minutes and 45 seconds (i.e. a total of 165 seconds), the payload message would be: cm?pw=xxx&sid=0&t=165&en=1

Refer to MQTT Command Subscriptions in the HTTP API reference for the complete command parameters and behavior.
